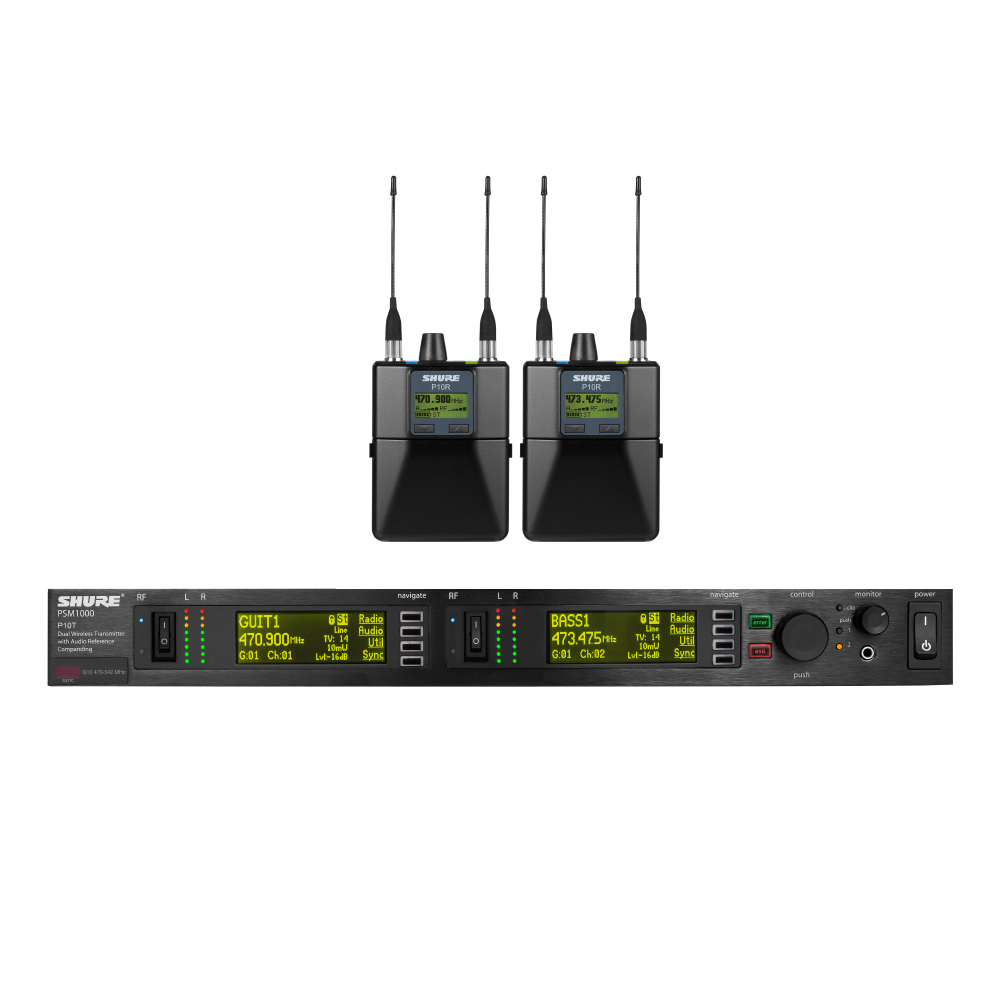

SHURE PSM1000 Професионална двойна in-ear мониторинг система (без слушалки)

SHURE PSM1000 Професионална двойна in-ear мониторинг система (без слушалки)

Съдържа:

• 1x P10T Rackmount Transmitter
• 2x P10R+ Bodypack Receiver
• 2x 1/2 Wave Antennas
• 4x AA Batteries
• 2x Antenna Cables
• IEC Power Cable and IEC Extension Cable
• Ethernet Network Cable
• Zippered Bag

Rackmount supplies:

• 2x antenna hole plugs
• 4x rack mounting screws with washers

Specifications

System:

• RF Carrier Range 470–952 MHz (regionally dependent)
• Compatible Frequencies 39 per band
• Tuning Bandwidth 72 MHz – 80 MHz (regionally dependent)
• Operating Range (environment dependent) 90m (300ft)
• Audio Frequency Response 35Hz – 15kHz
• Stereo Separation 60 dB
• Signal-To-Noise Ratio (A-Weighted) 90 dB (typical)
• Total Harmonic Distortion
• (ref. ±34 kHz deviation @1 kHz)
• <0.5% (typical)
• Companding Patented Shure Audio Reference Companding
• Spurious Rejection (ref. 12 dB SINAD) >80 dB (typical)
• Frequency Stability ±2.5 ppm
• MPX Pilot Tone 19 kHz (±0.3 kHz)
• Modulation FM, MPX Stereo (±34 kHz deviation, nominal)
• Operating Temperature -18 to +57 °C

P10T Rackmount Transmitter

• RF Output Power Selectable: 10, 50, 100 mW (regionally dependent)
• RF Output Impedance 50 Ω (typical)
• Net Weight 4.7 Kg (10.4 lb)
• Dimensions 44 X 483 X 343 mm
• Power Requirement
• (RF on, 100 mW power mode, no audio)
• Input: 100-240V AC, 50/60 Hz, 0.5A max (5.5 max outlet loaded)
• Output: 100-240V AC, 5A max, unswitched
• Audio Input
• Connector Type Combination XLR and 6.35 mm (1/4”) TRS
• Polarity XLR: Non-inverting (pin 2 positive with respect to pin 3)
• 6.35 mm (1/4”) TRS: Tip positive with respect to ring
• Configuration Electronically balanced
• Impedance 70.2 kΩ (actual)
• Nominal Input Level Switchable: +4 dBu, –10 dBV
• Maximum Input Level +4 dBu: +29.2 dBu
• –10 dBV: +12.2 dBu
• Pin Assignments XLR: 1=ground, 2=hot, 3=cold
• 6.35 mm (1/4”) TRS: Tip=hot, Ring=cold, Sleeve=ground
• Phantom Power Protection Up to 60 V DC
• Audio Output
• Connector Type 6.35 mm (1/4”) TRS
• Configuration Electronically balanced
• Impedance Connected directly to inputs

P10R+ Bodypack Receiver

• Tri-band RF Filtering –3 dB at 30.5 MHz from the center frequency of each band
• Active RF Gain Control 31 dB (adjusts RF sensitivity to provide more RF dynamic range)
• RF Sensitivity (20 dB SINAD) 2.2 μV
• Squelch Threshold 22 dB SINAD (±3 dB), default setting
• Adjacent Channel Rejection >70 dB
• Intermodulation Attenuation >70 dB
• Blocking >80 dB
• Image Rejection >90 dB
• Audio Output Power
• (1kHz @ <1% distortion, peak power, @16Ω)
• 100 mW per output
• Minimum Load Impedance 4 Ω
• Output Impedance <1 Ω
• 4-Band Parametric EQ Low Shelf Selectable Gain: ±2 dB, ±4  dB, ±6 dB @100 Hz
• Low Mid Selectable Gain: ±2 dB, ±4  dB, ±6 dB @160 Hz, 250 Hz, 400 Hz, 500 Hz, 630 Hz
• Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
• High Mid Selectable Gain: ±2 dB, ±4 dB, ±6 dB @1 kHz, 1.6 kHz, 2.5 kHz, 4 kHz, 6.3 kHz
• Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
• High Shelf Selectable Gain: ±2 dB, ±4  dB, ±6 dB @10 kHz
• Volume Limiter Selectable: 0 dB to -48 dB in 3 dB steps
• Volume Lock
• Limits volume adjustment knob.
• Selected value analogous to volume knob increment.
• Selectable: 0 dB to -70  dB
• Battery Life 4–6 hours (continuous use) with AA batteries
• Net Weight 158 g, without batteries
• Dimensions 99 mm x 66 mm x 23 mm (3.9 in. x 2.6 in. x 0.9 in.) H x W x D
