SHURE IMXRK70-E IntelliMix™ Room Kit 70 – Комплект за големи конферентни зали

SHURE IMXRK70-E IntelliMix™ Room Kit 70 – Комплект за големи конферентни зали

SHURE IMXRK70-E IntelliMix™ Room Kit 70 е цялостно решение за оборудване на големи конферентни зали. Комплектът съчетава висококачествен звук, интелигентна DSP обработка, 6K видеоконферентна камера и централизирано управление, като осигурява бързо внедряване и надеждна работа в корпоративна среда. Сертифициран за Microsoft Teams и Zoom.

Изграден върху платформата IntelliMix™ Foundation System и екосистемата Shure Microflex®, комплектът предлага предварително конфигурирани и напълно съвместими компоненти, които осигуряват бързо внедряване, надеждна работа и централизирано управление на цялата система.

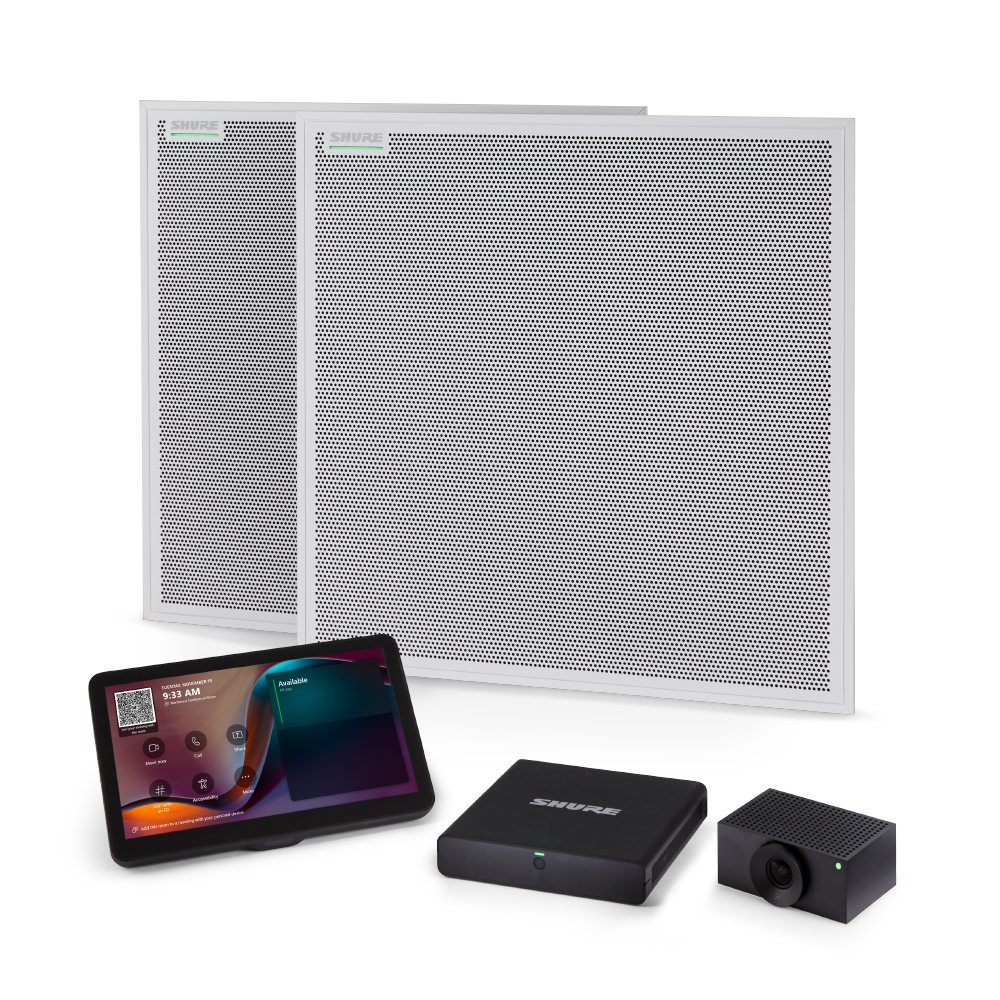

Комплектът съдържа:

• 1х IntelliMix™ Foundation System (Windows Compute + 11" Touch Panel)
• 2х MXA902  - Таванен микрофон с вграден високоговорител
• 1x Huddly L1 - 6K AI камера
• Необходимите захранващи, мрежови, USB и HDMI кабели
• Монтажни аксесоари

Характеристики

• Пълно решение за средни и големи конферентни зали
• Сертифициран за Microsoft Teams и Zoom
• Базиран на IntelliMix™ Foundation System с вграден IntelliMix Room DSP
• Включва 11" сензорен контролен панел с USB-C вход за споделяне на съдържание
• Таванен микрофон Shure MXA902 с интегриран високоговорител и IntelliMix DSP обработка
• 6K AI камера Huddly L1 с автоматично кадриране на участниците
• PoE+ мрежов суич за свързване и захранване на устройствата
• Dante аудио мрежа за надеждна цифрова свързаност
• Акустично елиминиране на ехото (AEC), шумопотискане, автоматично миксиране и еквализация
• Shure Audio Encryption за защитено предаване на аудио
• Централизирано управление чрез Shure Designer и ShureCloud
• Лесна инсталация с предварително подбрани и съвместими компоненти
• Подходящ за корпоративни конферентни помещения и заседателни зали

Документация:

https://www.shure.com/en-EU/products/video-conferencing/imxrk#support

Specifications

INTELLIMIX FOUNDATION COMPUTE

GENERAL

• CPU: 12th generation Intel Core i5 processor
• Memory: 16 GB DDR4
• Storage: 256 GB
• Graphics: Intel UHD Graphics for 12th generation Intel processors
• Operating System: Windows 11 IoT Enterprise (x64)
• Software: Microsoft Teams or Zoom Rooms, IntelliMix Room (8-channel)

INPUTS AND OUTPUTS

• RJ45 (LAN): 1
• RJ45 (To Touch Panel): 1
• HDMI Out: 3
• USB-A 3.0: 4
• Power (DC In): 1
• Kensington Lock: 1

POWER

• Power Supply: FSP120-ABBN3
• Power Consumption: 120 W max.

PHYSICAL SPECIFICATIONS

• Weight: 2.4 lb. (1.1 kg)
• Dimensions (W x D x H): 7.7 x 7.7 x 1.6 in. (196 x 196 x 40.17 mm)
• Operating Temperature: 0°C (32°F) to 40°C (104°F)
• Storage Temperature: −20°C (−4°F) to 60°C (140°F)

ACCESSORIES

• VESA Mounting Bracket set: 1 (includes wall bracket, screwdriver, KA3 x 30 screws (4x),
• expansion screws (4x)
• Power Adapter: 1
• Power Cord: 3 or 4 x 6ft (1.8m), regional variants for America, Europe and Asia
• HDMI Cable: 2 x 10ft (3m)
• Ethernet Cables: 1x 3ft (0.9m), 1x 10ft (3m), 2x 25ft (7.6m), 1x 50ft (15.2m)

INTELLIMIX TOUCH PANEL

DISPLAY

• Resolution: 1920 x 1080
• Frequency Refresh Rate: 60 Hz

TOUCH SYSTEM

• Type: Capacitive touch
• Surface Treatment: Anti-fingerprint, anti-glare
• Motion Sensor: PIR sensor for automatic wake-up

INPUTS AND OUTPUTS

• RJ45 (To Compute): 1
• USB-C (Content Sharing): 1
• USB-A 2.0: 1
• Audio Out (3.5 mm): 1

POWER

• Input Power
• 52V DC (0.49 A)
• Delivered by DisplayLink over Cat6
• Power Consumption: 13 W max.
• Cable Requirements for Compute to Touch Panel Cat6
• (shielded cable recommended)
• Maximum Cable Length for Compute to Touch Panel
• Shielded Cable: 200 ft (60.9 m)
• Unshielded Cable: 30 ft (9 m)

PHYSICAL SPECIFICATIONS

• Weight: 2.8 lb. (1.3 kg)
• Dimensions (W x D x H): 11.2 x 6.7 x 3.2 in. (284.51 x 169.63 x
• 82.33 mm)
• Operating Temperature: 0°C (32°F) to 40°C (104°F)
• Storage Temperature: −20°C (−4°F) to 60°C (140°F)

ACCESSORIES

• USB-C Cable: 1 x 6ft (1.8m)

NETWORK SWITCH (Included in IntelliMix Foundation System)

GENERAL

• Model: S1600V2-6P-HPWR
• Switching capacity: 12Gbps
• Forwarding capacity: 8.93Mpps
• Port Surge: 6KV
• Fan: None
• MTBF(Year): 88.60
• MTTR(Hour): 1

NETWORKING INTERFACE

• GE (PoE+): 4
• GE: 1
• SFP: 1

POWER

• Input voltage:  AC: Rated voltage range is 100V to 240V, 50/60Hz.
• Power Consumption: 86 W (PoE 73 W) max.

PHYSICAL SPECIFICATIONS

• Dimensions (W x D x H): 5.12 x 4.88 x 1.06 in (130 x 124 x 27 mm)
• Weight: ≤0.5 kg
• Operating Temperature: −5°C (23°F) to 50°C (122°F)
• Storage Temperature: −40°C (−40°F) to 70°C (158°F)

USB 3.0 TO GIGABIT ETHERNET NETWORK ADAPTER

INTERFACE

• RJ45 (10/100/1000Mbps): 1
• USB 3.0: 1

PHYSICAL SPECIFICATIONS

• Dimensions: 2.8 x 1.0 x 0.6 in. (71 x 26 x 16.2 mm)
• Operating Temperature: 0°C (32°F) to 40°C (104°F)
• Storage Temperature: −40°C (−40°F) to 60°C (140°F)

MXA902 CEILING ARRAY MICROPHONE + LOUDSPEAKER

GENERAL

• Model: MXA902-S or MXA902-S-60CM
• Coverage Area Size: 20 x 20 ft (6.1 x 6.1 m)
• Coverage Type: Single-zone automatic
• Power Requirements: Power over Ethernet Plus (PoE+), Class 4
• Max. Power Consumption: 24 W
• Control Software: Designer
• Cable Requirements: Cat5e or higher (shielded cable recommended)
• Connector Type: RJ45

MICROPHONE

• Frequency Response: 125 Hz to 20 kHz
• AES67 or Dante Digital Output
• Channel Count: 1 output channel
• Sampling Rate: 48 kHz
• Bit Depth: 24
• Sensitivity at 1kHz: −1.74 dBFS/Pa
• Maximum SPL
• Relative to 0 dBFS overload
• 95.74 dB SPL
• Signal-to-Noise Ratiо
• Ref. 94 dB SPL at 1 kHz
• 75.76 dB A-weighted
• Latency: Not including Dante latency: 26.6 ms
• Self Noise: 18.24 dB SPL-A
• Dynamic Range: 77.5 dB
• Digital Signal Processing
• Automatic mixing, acoustic echo cancellation (AEC), noise reduction,
• automatic gain control, compressor, delay,
• equalizer (4-band parametric), mute, gain (140 dB range)
• Acoustic Echo Cancellation Tail Length: Up to 250 ms

LOUDSPEAKER

• AES67 or Dante Digital Input: Channel Count: 2 input channels
• Frequency Range: (−10 dB) 120 Hz to 20 kHz
• Maximum Output Level
• At 1 meter
• Pink noise: 86 dB SPL
• 1 kHz sine tone: 88 dB SPL
• Coverage Angle: Average of 1 octave band centered on 4 kHz: 80°
• Digital Signal Processing: Delay, compressor, signal generator, equalizer (4-band parametric)
• Latency: Not including Dante latency: 6.3 ms

PHYSICAL SPECIFICATIONS

• Dimensions: MXA902-S-60CM
• Edge to edge: 23.38 in (593.8 mm)
• Height: 2.2 in (56.04 mm)
• Dimensions: MXA902-S
• Flange: 0.41 in (10.5 mm)
• Edge to edge: 23.77 in. (603.8 mm)
• Height: 2.2 in. (56.04 mm)
• Weight: 12.7 lb. (5.8 kg)
• Plenum Rating: UL2043 (Suitable for Air Handling Spaces)
• Dust Protection: IEC 60529 IP5X Dust Protected
• Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
• Storage Temperature Range: −29°C (−20°F) to 74°C (165°F)

HUDDLY L1

For additional specifications, please visit www.huddly.com/iq

CAMERA

• Sensor: 20.30 Megapixels 1” CMOS Sensor
• Resolutions @ 30 fps: 1080p Full HD, 720p HD
• Field of View
• Horizontal: 92 ̊
• Vertical: 65 ̊
• Diagonal: 103 ̊
• Zoom: Up to 5x digital zoom

CONNECTIVITY

• RJ45 (PoE and data): 1
• Cable Requirements
• Cat5e or higher
• USB-C: USB 3.0 port via USB to PoE Adapter

PHYSICAL SPECIFICATIONS

• Dimensions (W x D x H): 4.8 x 3.5 x 2 in (122 x 90 x 53 mm)
• Weight: 1.3 lbs (0.6 kg)
