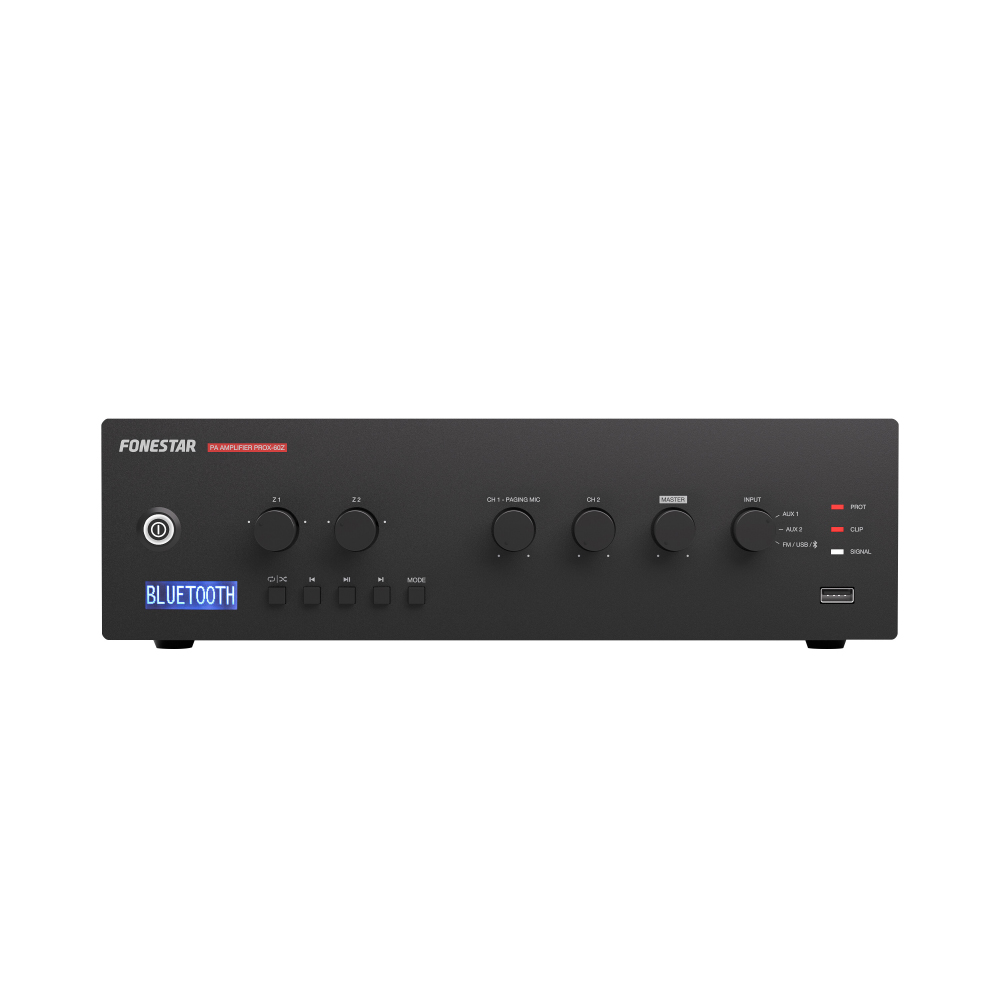

Усилвател 60W Fonestar PROX-60Z

Усилвател 60W Fonestar PROX-60Z

Specifications:

• Features:
• Public Address Amplifier
• Bluetooth/USB/FM player.
• Microphone inputs with mix, gain and priority level control.
• Input priorities by signal level.
• Tone controls.
• 100 V and 4 Ω outputs.
• 2 output zones with volume and Off control.

Power: 60 W RMS

Response: 60-20,000 Hz (-10 dB)

Distortion: THD+N: < 1% @ 1 kHz

S/N Ratio: >77 dB

Protections: Overcurrent, DC and short-circuit at the output

Inputs:

• CH 1 balanced mic/line with 48V Phantom, Combo (XLR + 6.3 mm) and euroblock.
• CH 2 balanced mic/line with 48V Phantom, Euroblock connector.
• Mic signal level: 6 mV RMS (-44 dBV) / 600 Ω
• Line signal level: 250 mV RMS (-12 dBV) / 100k Ω
• 2 AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω
• 1 emergency. Euroblock connector. Signal level loudspeaker line 100 V
• 1 Mute (Emergency Priority) by contact closure. Euroblock connector

Outputs:

• 1 line. 2 x RCA connector. Signal level 1.25 V RMS (+2 dBV)
• 100 V or 4 Ω speaker output, or 2 100 V speaker zones with 5-position volume selector and OFF. Connector screw terminals

Impedance: 4 Ω and 100 V line (166 Ω)

Functions:

• Input priority (Voice over VOX inputs):
• 100 V Emergency input with highest priority, attenuates all other inputs.
• Mute by contact closure, attenuates all inputs except the 100 V Emergency input.
• Channel 1 with priority over all other inputs, selectable level.
• Channel 2 with priority over auxiliary inputs, level selectable.
• Power on, protection, signal peak and output signal indicator lights.
• Fanless induction cooling

Player:

• Bluetooth/USB/FM player for background music playback
• MP3 and WAV files supported
• Maximum USB memory capacity 64 GB
• Autoplay, starts playback automatically on power on
• Memory of last selected mode
• Memory of playback mode (random, repeat)

Controls:

• Microphone volume
• Mic/line/phantom selector
• Master volume
• Aux input or player selector
• Zone volume
• Tone: bass and treble (+/- 10 dB 100 Hz and 10k Hz)
• Microphone gain
• Priority activation signal level (VOX)

Operating Temperature: Operation: 0º ~ 40ºC

Maximum Humidity: 95%

Power Supply:

• 230/115 V AC 50-60 Hz, 200 W
• Fuse AC 230 V 1.5 A / 115 V 3.15A

Dimensions: 320 x 94 x 281 mm depth

Weight: 5 kg

Accessories:

• FM antenna
• Bluetooth antenna
• Power cable
