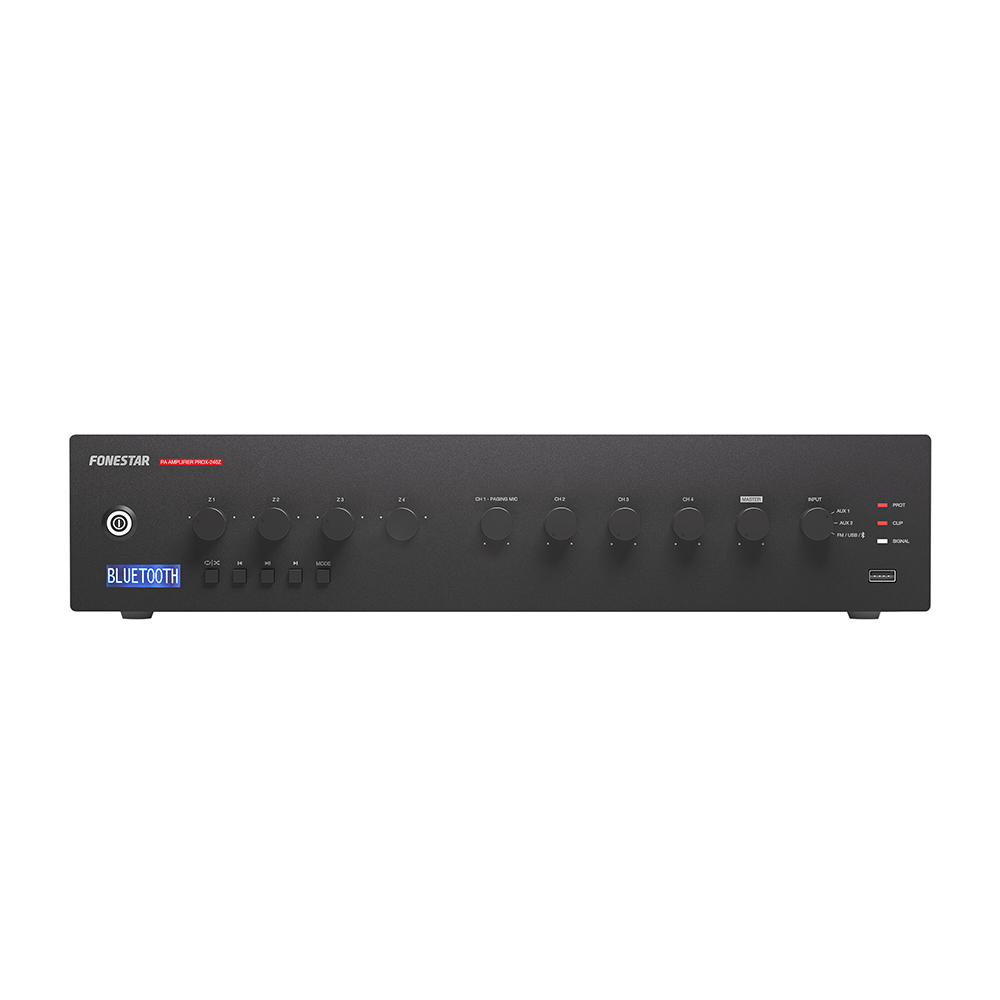

Усилвател 240W Fonestar PROX-240Z

Усилвател 240W Fonestar PROX-240Z - двузонов

Specifications:

Features:

• Public address amplifier.
• Bluetooth/USB/FM player.
• Microphone input with mix, gain and priority level control.
• Input priorities by signal level.
• Tone controls.
• 100 V and 4 Ω outputs.
• 4 outputs zones with volume control and Off.

Power: 240 W RMS

Response: 40-20,000 Hz (-10 dB)

Distortion: THD+N: < 1% @ 1 kHz

S/N Ratio: >77 dB

Protections: Overcurrent, DC and short-circuit at the output

Inputs:

• CH 1 balanced mic/line with 48V Phantom, Combo (XLR + 6.3 mm) and euroblock.
• CH 2, 3 and 4 balanced mic/line with 48V Phantom. Euroblock connector.
• Mic signal level: 6 mV RMS (-44 dBV) / 600 Ω
• Line signal level: 250 mV RMS (-12 dBV) / 100k Ω
• 2 x AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω
• 1 x emergency. Euroblock connector. Speaker line signal level 100 V
• 1 x mute (Emergency Priority) by general purpose NO/NC contacts. Euroblock connector

Outputs:

• 1 x line. 2 x RCA connector. Signal level 1.25 mV RMS (+2 dBV)
• 100 V or 4 Ω speaker output, or 4 x 100 V speaker zones with 5-position volume selector and OFF (max. 120 W RMS per zone). Connector screw terminals

Impedance: 4 Ω and 100 V line (42Ω)

Functions:

• Priority of inputs (in order of attenuation):
• Emergency Input 100V.
• Mute by general purpose NO/NC contacts.
• Channel 1 with shared selectable signal level CH 1-2-3-4 (VOX)
• Channels 2 | 3 | 4 | with shared selectable signal level CH 1-2-3-4 (VOX)
• Auxiliary Inputs | Player
• Indicator lights for power, protection, signal peak, and output signal
• Temperature-controlled forced ventilation cooling

Player:

• Bluetooth/USB/FM player for ambient music playback
• MP3 and WAV files supported
• Maximum USB memory capacity 64 GB
• Autoplay, starts playback automatically when switched on
• Playback mode memory (random, repeat).

Bluetooth: 5.3

Controls:

• Microphone volume
• Mic/line/phantom switch
• Master volume
• Auxiliary input selector or player
• Zone volume
• Tone: bass and treble (±10 dB 100 Hz and 10k Hz).
• Microphone gain
• Priority activation signal level (VOX)

Operating Temperature: Operation: 0º ~ 40ºC

Maximum Humidity: 95%

Power Supply:

• 230/115 V AC 50-60 Hz, 320 W
• Fuse AC 230 V 3.15 A / 115 V 6 A

Dimensions: 433 x 89 x 360 mm depth. 2 U 19” rack

Weight: 11.5 kg

Accessories:

• FM Antenna
• Bluetooth antenna
• Power cable
• Rack mounts
